Will a smart lock fit your NYC apartment’s mortise door?

A smart lock will fit your NYC mortise door only if the exact product supports the existing lock mechanism and door preparation, or a properly assessed conversion is possible. A deadbolt advertised for “standard doors” is not automatically a replacement for a mortise lock. Check the door before ordering, particularly if the handle, key cylinder and inside thumbturn belong to one mortise assembly.

Start with two decisions: which physical lock needs electronic control, and whether you are authorized to change it. A door with a mortise lock below a separate deadbolt presents a different project from a door where one mortise case controls the latch and bolt together. A photograph of the outside alone may not settle that distinction.

Read the door before choosing the app

A mortise lock has a body fitted into a pocket in the door edge. Its trim and operating components connect to that body. Schlage’s mechanical lock guide explains this construction and how a mortise unit can combine several latching functions. That is a different starting point from the bored holes used by a typical separate residential deadbolt.

Look at the accessible edge of the open door. A long faceplate serving the handle and locking mechanism is a clue that a mortise assembly may be present. A separate small faceplate higher up may belong to another lock. Treat those observations as information for identification, not a definitive diagnosis. Older doors can have replacement trim, patched holes or more than one generation of hardware.

You do not need to remove the faceplate or cylinder to prepare an initial inquiry. Take clear photographs and record visible manufacturer markings. If the door is locked closed, leave the hidden measurements for a professional inspection. Do not dismantle a working apartment entrance simply to complete a shopping checklist.

Our mortise and cylinder lock guide for NYC doors can help you describe the parts you can see. The purchasing decision still needs the candidate product’s own template and compatibility information.

Two product examples show why fit needs specifics

The August Wi-Fi Smart Lock is an interior retrofit for a compatible existing single-cylinder deadbolt, meaning a deadbolt with an exterior key and an interior thumbturn. August says the exterior lock and existing keys remain. Its product specifications direct buyers to a deadbolt compatibility check. Those requirements do not establish support for an arbitrary mortise assembly simply because that assembly also has a thumbturn.

Schlage’s Encode Plus BE499 is a replacement smart deadbolt. Its manufacturer data sheet lists a standard door thickness of 1⅜ to 1¾ inches, a backset of 2⅜ or 2¾ inches, a face bore of 1½ or 2⅛ inches and a 1-inch edge bore. The sheet lists a separate thick-door-kit range. Confirm the correct kit for the exact unit rather than treating every thickness between the published ranges as supported.

What is on your door	What those examples establish	What still needs confirmation
A separate single-cylinder deadbolt above another lock	An interior retrofit or replacement deadbolt may be a candidate	Exact deadbolt compatibility, door preparation and clearance from the lower hardware
One mortise assembly with a handle and thumbturn	Neither example provides blanket approval for that assembly	A manufacturer-supported solution for the identified mortise case and function
A mortise door with old holes or cover plates	Visible trim cannot establish the underlying preparation	What the door contains and whether any proposed alteration is acceptable

Matching one dimension is not enough. A correct backset does not make a large mortise pocket equivalent to a round deadbolt bore. A trim plate that covers a mark does not establish suitable support for the new lock. Ask the installer to explain how every mounting requirement will be satisfied before approving a conversion.

These examples are screening tools, not endorsements or a complete shopping list. If a seller says a product fits mortise locks, request the supported manufacturer, lock case, cylinder or adapter, and regional version. “Mortise compatible” without those details leaves the central question unanswered.

Build a photo and measurement packet

Send the installer enough information to identify the door and compare it with a product template. Keep apartment numbers, account codes and the cut surfaces of keys out of the pictures. Use a private channel agreed with the recipient.

Gather these views while you have authorized access and can control the door:

Exterior face: the whole handle and lock arrangement, including any separate upper lock and cover plates.
Interior face: the thumbturn, handle, nearby trim and any existing electronic unit.
Open door edge: the visible lock faceplate, separate latches or bolts, and readable maker markings.
Frame and strike: where the door meets the frame, plus an overview showing the door’s swing.

Then add measurements you can take without removing hardware:

Item to record	How it helps the fit review
Door thickness at the lock area	Checks the product’s stated thickness range and any required kit
Approximate backset	Records the distance from the door edge to the relevant operating center; identify which center you measured
Spacing between the handle, key cylinder and thumbturn	Helps compare an integrated assembly and detect conflicting trim
Faceplate height and width	Gives the installer another clue to the existing lock case
Clear space around the inside control	Helps check whether a motor housing would collide with trim or another lock
Distance to nearby trim when the door opens	Flags possible contact with the wall, frame or an adjacent door

Label approximate measurements as approximate. Do not guess at a hidden bore diameter or mortise-pocket depth. The installer can verify those during an authorized inspection if they are necessary. Include the proposed product’s full model code and official installation template in the same message, so the discussion concerns one identifiable configuration.

Resolve permission and door condition before alterations

For a rental, co-op or managed condominium, ask the responsible owner or manager what changes require approval. Get the proposed hardware and any door modification described in writing. Ask about exterior appearance, building key arrangements and what must be restored when you leave. A retailer’s “renter friendly” description does not answer those building-specific questions.

If the entrance is a rated door assembly, have the responsible building professional confirm the proposed hardware and any alteration against the assembly’s requirements. A fire rating printed on a lock’s product page does not, by itself, approve that lock for every rated door. Preserve reliable closing, latching and exit operation throughout the project.

Tell the installer if the present lock binds, the door rubs the frame or you must lift the handle unusually hard to operate it. Ask for those conditions to be assessed before adding a motor. Include the repair and installation work as separate items where possible, so you can understand what solves the existing problem and what adds electronic access.

The NYC rental smart lock guide covers planning questions for renters. In a co-op, use the lock-change and board-approval guide to prepare your request to management.

Ask for a fit decision you can review

A useful assessment ends with a named configuration and an explanation. It should tell you whether the existing mortise case stays, which components change and whether new holes or other alterations are proposed. If the installer cannot confirm compatibility from your pictures, an inspection is a reasonable next step. Clarify its charge before scheduling it.

Ask for the product model, required adapters or kits, labor and door repairs in the written estimate. Verify the attending technician’s identity and credentials. Establish who handles manufacturer support, installation corrections and a return if the supplied hardware proves unsuitable.

You may decide to retain the mechanical mortise lock, automate a compatible separate deadbolt, or consider a different supported system after inspection. If another independent lock still needs its own key, adding electronics to one lock will not create key-free entry through the whole door. Discuss that daily-use detail before paying for hardware.

FAQ

Can I replace only the inside thumbturn?

Sometimes, if a manufacturer explicitly supports that lock and adapter arrangement. A removable-looking thumbturn is not proof of compatibility. Have the existing mechanism identified and compare it with the candidate’s official requirements before buying a retrofit device.

My door is 1¾ inches thick. Does that mean Encode Plus fits?

Thickness is only one requirement. The bore sizes, backset, mounting support and clearances must also match. An existing mortise pocket needs its own assessment; the thickness measurement does not establish a direct replacement.

Should I buy the smart lock and let the installer make it fit?

Send the exact model and door packet for assessment first. Ask about the seller’s return conditions before purchasing. If installation would require modifying the door, obtain the owner’s approval and a written description of that work before it begins.

Can I keep the original lock if there is no suitable smart option?

Yes, retaining serviceable hardware is a valid choice. Ask whether your actual need is electronic guest access, fewer keys or easier operation. That discussion may lead to a smaller change, or a decision to keep the existing arrangement.

For help assessing the door, start with LockAtlas’s smart lock and keyless entry installation in NYC and request a model-specific fit review before authorizing hardware purchases or alterations.

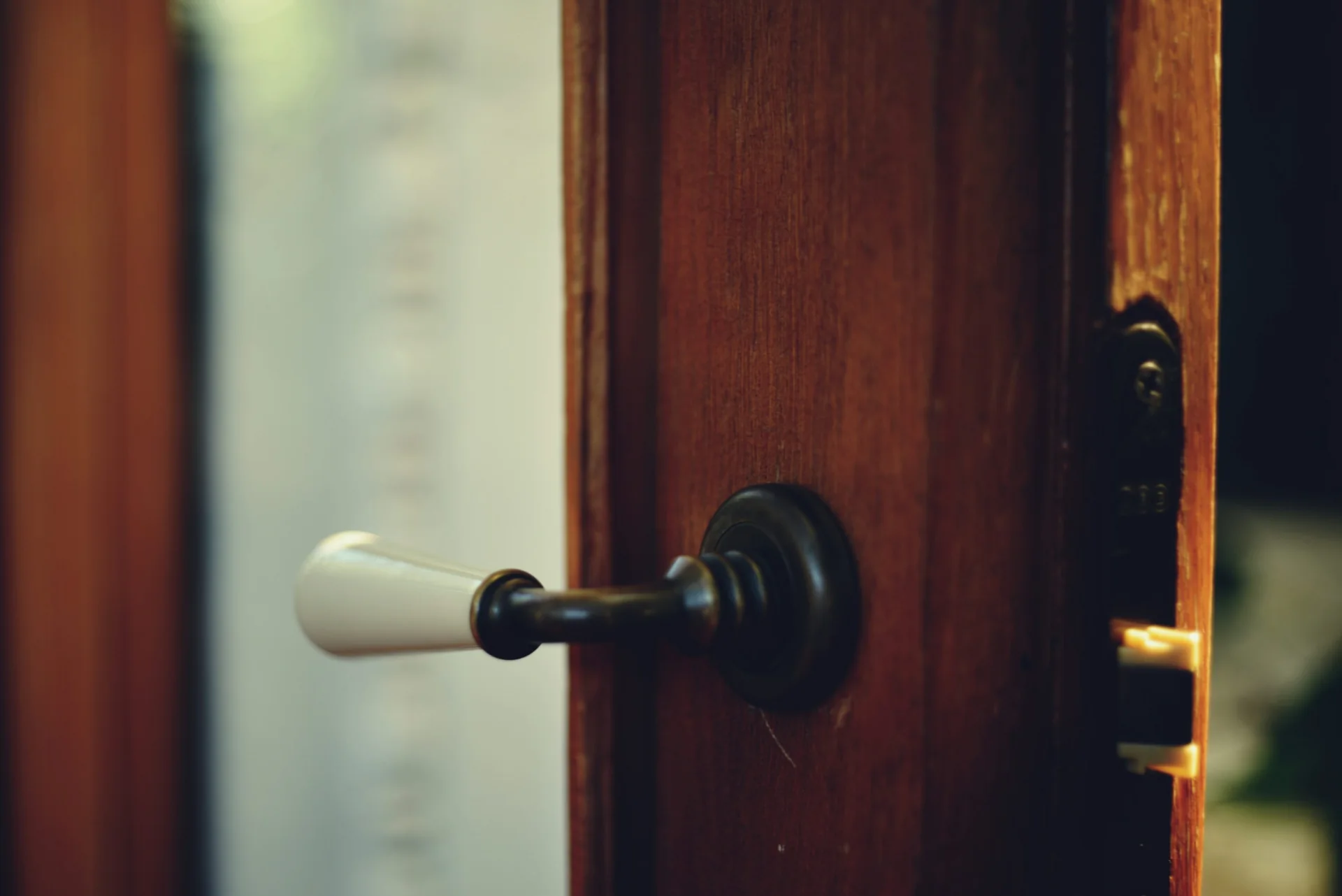

Visible trim and the door edge help identify existing hardware. Illustrative stock photograph.
